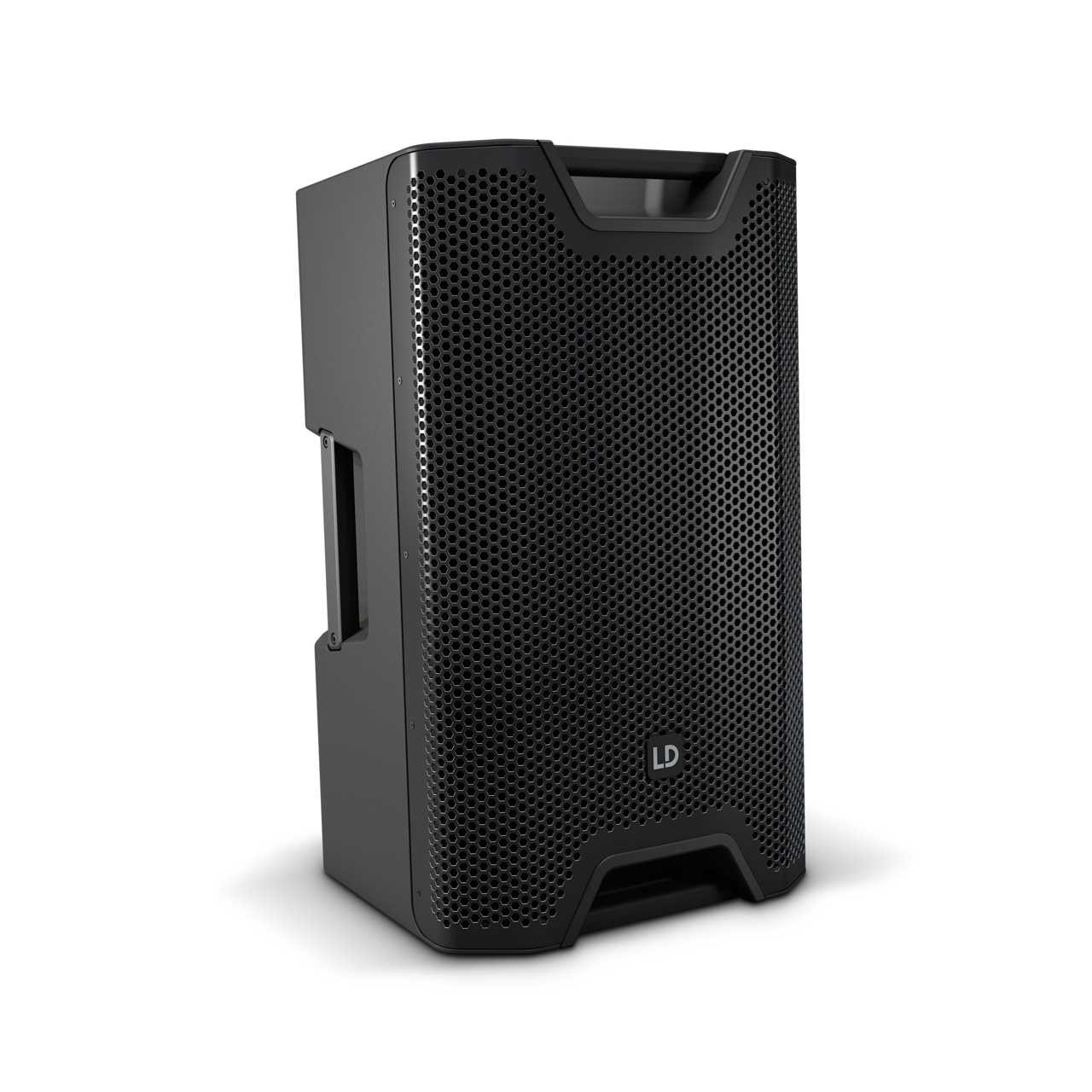

LD Systems ICOA 12A BT

Vörunúmer: AH-LDICOA12ABT
12" 2 way hátalari með innbyggðum mögnurum. Hámarks hljóðstyrkur 126dB. Innbyggður bluetooth móttakari. Hægt er að breyta hljóðgeislanum ef nota á hátalarann sem sviðsmónitor.
69.900 kr.
Lagerstaða: Á lager
+ -

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 300 W RMS performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth® streaming and the wireless connection of playback devices - ideal for playing content from a phone or tablet.

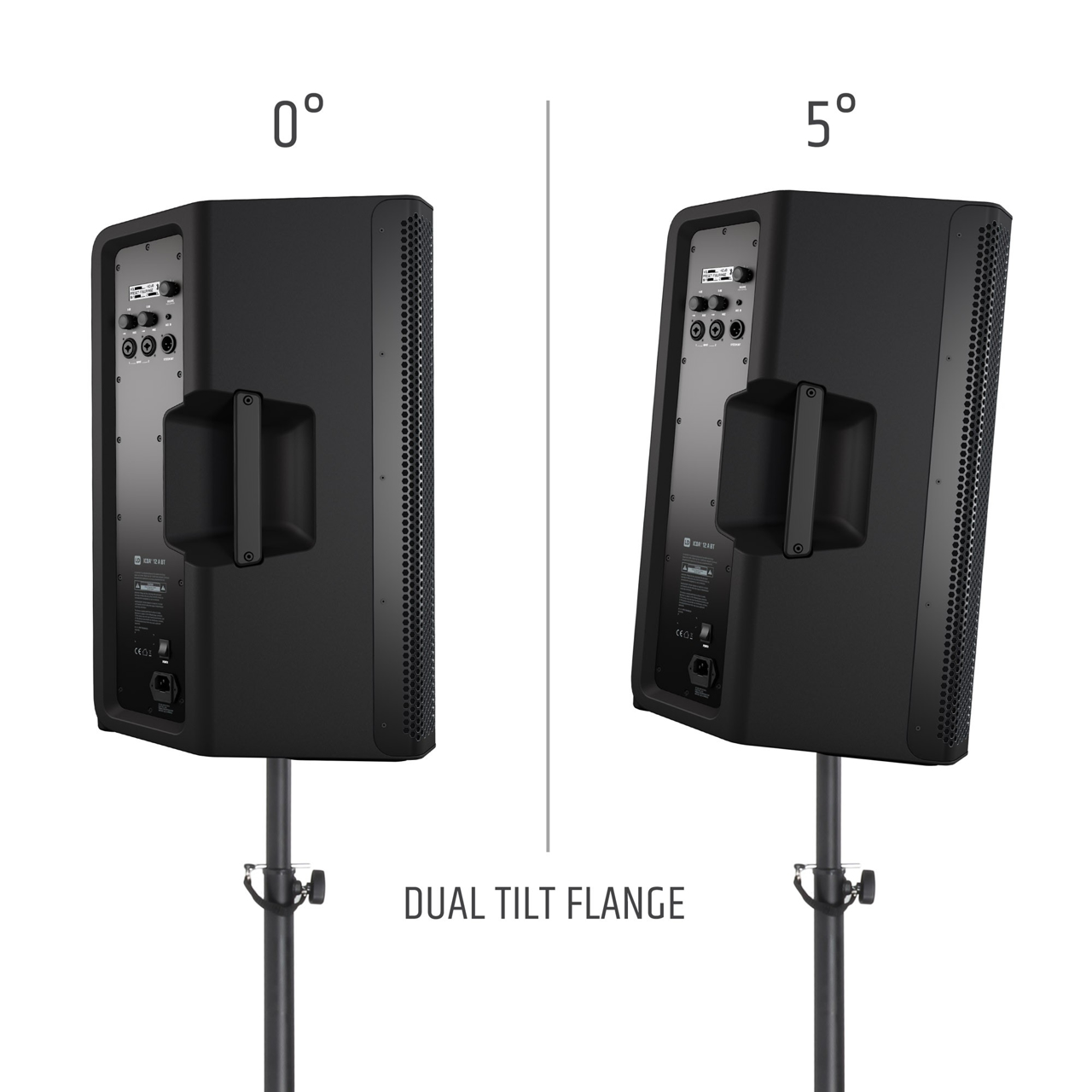

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.


Product type PA loudspeaker
Type Powerd
Bluetooth Audio Decoder Bluetooth 4.0
Low/mid driver dimensions 12 "
Woofer size 304.8 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Horn BEM optimized CD Horn
HF driver dimensions 1 "
HF Driver Size 25.4 mm
HF driver magnet Ferrite
HF driver brand Custom-made
HF driver voice coil 1 "
HF Driver Voice Coil 25.4 mm
Amplifier Class D
Dispersion (H x V) 90 ° x 50 °
RMS 300 W
Peak power 1200 W
Frequency response 50 - 20000 Hz
Crossover frequency kHz 2 kHz
Max. SPL (peak) 126 dB
Protection circuits Multiband limiter , over voltage , over-current , thermal overload

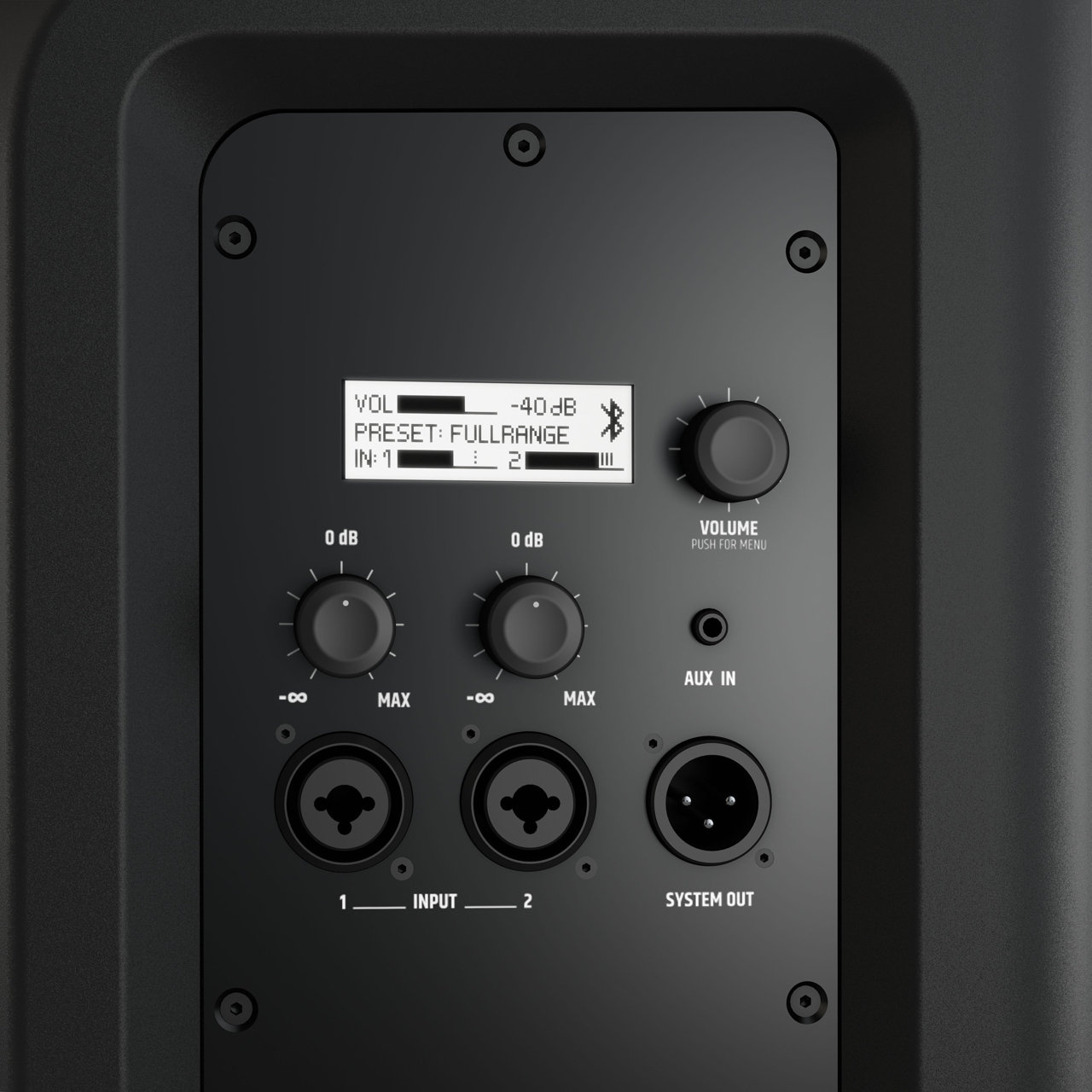

Controls 2 x gain , On / off switch , Rotary/push encoder
Indicators LC display
Mic/ line inputs 2
Mic-/ Line Input Connectors 6.3 mm jack Combination sockets (symmetrical) , XLR
Line inputs 1
Line input connectors 3.5 mm TRS
Line outputs 1
Line output connectors XLR
Operating voltage SMPS
Power consumption 150 W
Ambient temperature ( in operation ) 0 - 40 °C
Operating voltage 100 V - 240 V AC / 50 - 60 Hz
Relative Humidity < 80 %, not condensing
Fuse T4AL 250 V
Cabinet material Polypropylene
Cabinet construction Bass Reflex
tripod flange 32 °F , 36mm flange , 5°
Monitor angle 55 °
Width 375 mm
Height 635 mm
Depth 396 mm
Features 6 x M10 flying points , Bluetooth
Weight 19,95 kg
Accessories (included) Power cord
