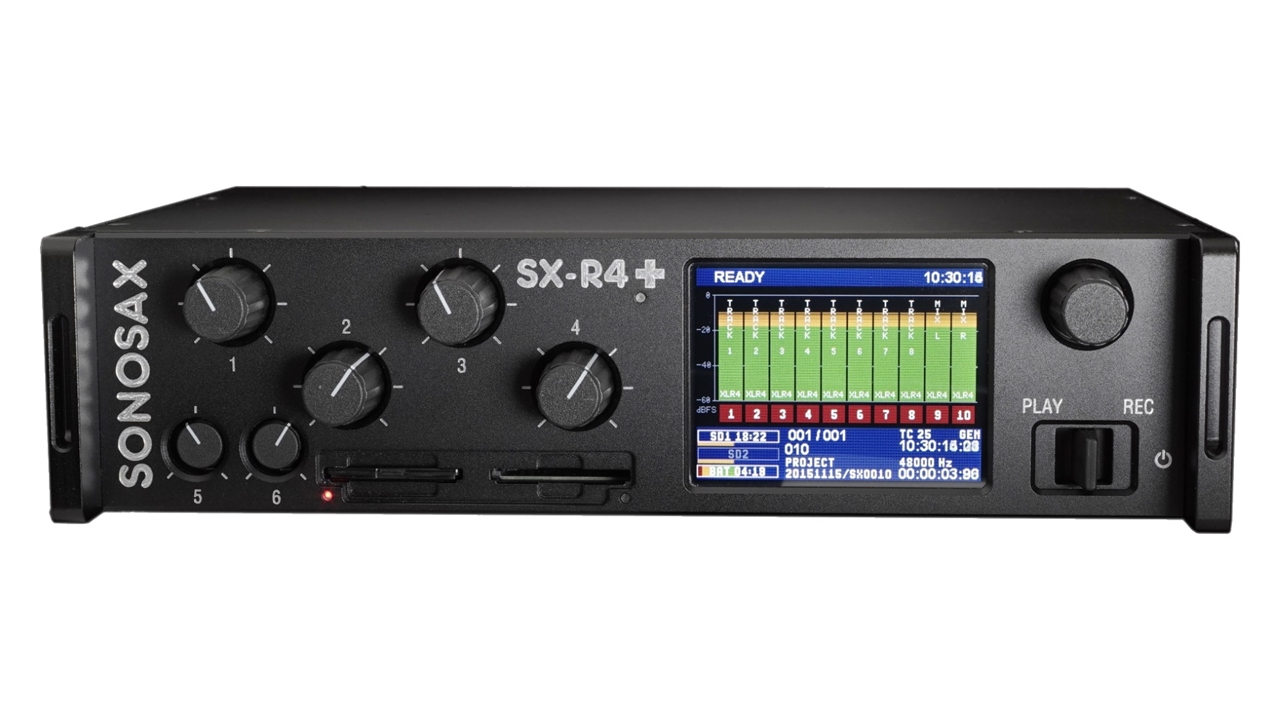

Sonosax SX-R4+

SONOSAX SX-R4

Description

Inputs / Outputs

• 4x XLR-3F inputs, individually configurable as:
  – ANALOG: mic/line levels, electronally balanced, with phase reversal, 48V phantom, LF cut and level control on the front panel
  – DIGITAL: transformer balanced AES3 or AES42 with ASRC, phase reversal, LF cut and level control on the front panel$
• 2x Line inputs, electronically balanced on TA-3 with level control on the front panel
• 4x AES3 balanced inputs on multi-pin connector
• 1x AES3 balanced input with ASRC on TA-3 connnector (shared with AES3 output)
• 2x analog unbalanced line outputs on TA-3
• 1x AES3 balanced output (user independant sampling frequency) on TA-3 connnector (shared with AES3 input)
• Up to 12x Mic inputs when connected to the SONOSAX AD8+
• Optional audio over IP on RJ45 connector, such as AVB, Dante & Ravenna

Performance

• 135 dB (A-weighted) overall dynamic range from analog input to recorded file (114 dB (A-weighted) dynamic range with USA version)
• 90kHz overall frequency response @192 kHz recording
• 40 bits processing

Recording capabilities

• up to 16 tracks recording on 2x SD cards (SDHC, SDXC)
• uncompressed BWF with iXML metadata
• 44,1 up to 192 kHz @ 24bits, Pull up/down 0.1% for NTSC world

User Interface

• Touch screen 2.4” TFT color display
• WiFi dynamic web-app interface

Powering

• Removable 14.4V 48Wh Lithium battery, SMBUS capable
• External DC 9..18V on Hirose 4pins, SMBUS capable, electrically isolated
• 12V regulated decoupled DC output to power peripherals equipments up to 7W
• Intelligent energy management with detailed on-screen information

Timecode

• Accuracy: 0.5 ppm
• Independant in/out on lemo connector
• 23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND

Mechanical

• Machined aluminum housing
• Overall dimension: 200 x 50 x 144.5 mm (7.87” x 1.96” x 5.7”)
• Weight: 910
